PL38

Category:

PL38

Specifications

  • Elements:
    		•  Back Electret Condenser
  • Polar Pattern:
    		•  Cardioid
  • Frequency:
    		•  80~16,000 Hz
  • Sensitivity:
    		•  -66dB ±3 dB(0dB=1ubar@1KHz)
  • Impedance:
    		•  600 Ω ±30% (@1KHz)
  • Operating Voltage:
    		•  1V~10V DC
  • Connector:
    		•  mini-XLR (female)
  • Dimension:
    		•  13x353mm

    Diagrams

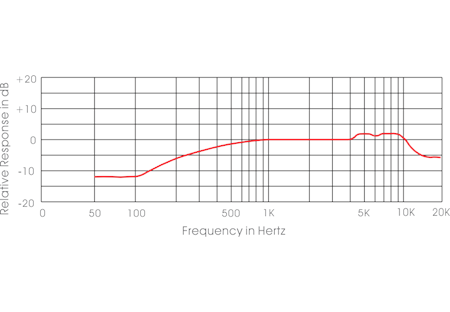

    Frequency Response

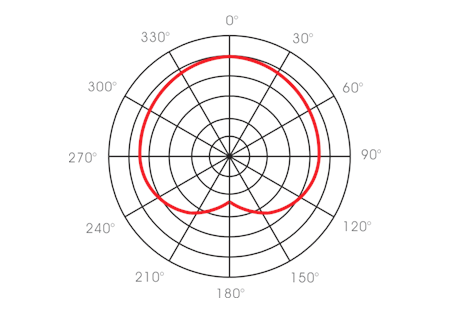

    Polar Pattern
